¶ Placing the Device
It is recommended to place the VDS on the right side of the printer, with its filament outlets facing the printer.
¶ Connecting the Printer
Follow these steps to connect the VDS to the Creator 5 series:
- Connect the provided 4-pin data cable to the data ports on both the VDS and the printer.
|
|
- Plug the power cord into the power port on the device and connect it to a power source. Allow the VDS to complete its startup.

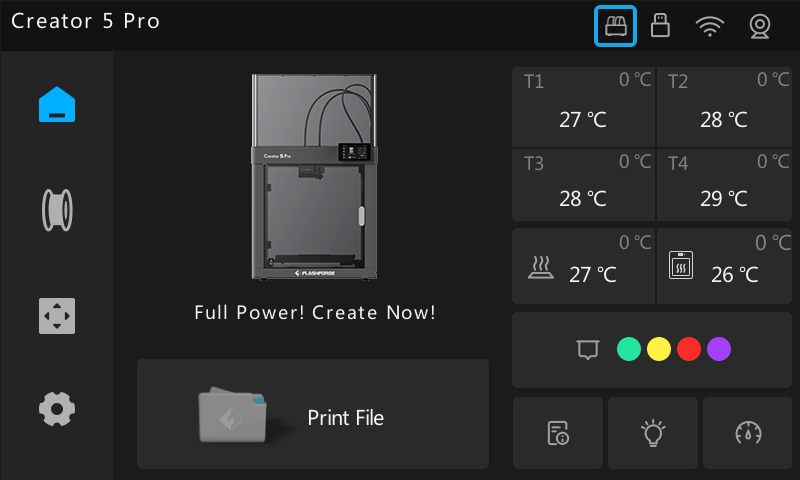

- Check the status bar on the printer screen. The VDS is successfully connected when the icon
appears.
For detailed instructions on installing the spool, refer to Installing and Loading Filament.
For details on operating in Connected Mode, refer to Connected Mode.
