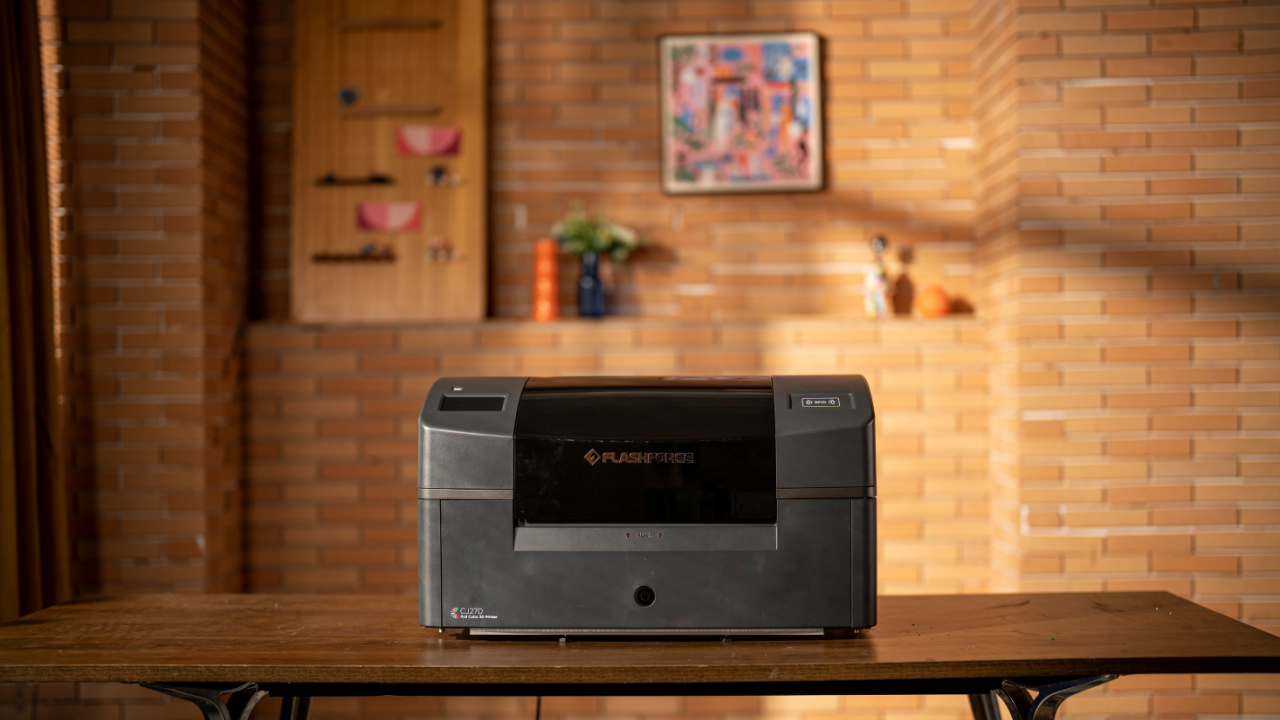

The CJ270 is a full-color 3D printer that utilizes advanced MultiJet Printing (MJP) technology to deliver true "what you see is what you get" high-precision, full-color 3D manufacturing. Building upon the layer-by-layer fabrication principle of traditional 3D printing, it integrates professional-grade color material jetting technology to simultaneously build and color models during the printing process. This enables the production of vividly colored, structurally complete 3D models in a single step.
¶ Core Technology Workflow:

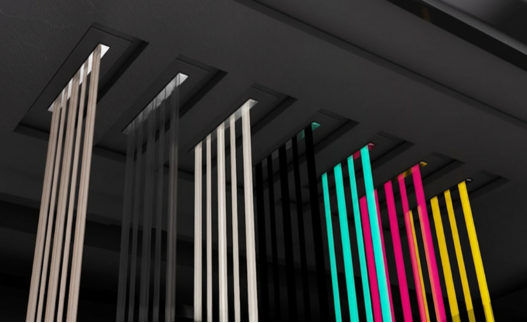

¶ Six-Channel Intelligent Jetting System
The printheads integrate six channels: CMYKW+V. In addition to the standard cyan, magenta, yellow, and black resins (CMYK), the system also incorporates white (W) and clear/varnish (V) resin materials. White resin is not only used for pure white areas, but also serves as a base layer for color printing, ensuring vibrant and saturated colors even on clear materials. Clear resin adds localized gloss, transparency, or unique textures, greatly expanding visual expression.
¶ Real-Time 10 Million-Color Mixing for Rich, Detailed Color Reproduction
By precisely controlling the ratio of CMYK resin droplets within each voxel, the system can mix and generate over millions of colors in real time. Color is embedded directly into the model itself rather than painted on the surface afterward, resulting in excellent wear resistance and fade resistance while enabling smooth gradients and faithful reproduction of complex patterns.
¶ Simultaneous Multi-Material Printing with Easy-to-Remove Supports
- During the printing process, the system simultaneously jets two types of resin materials:
- Color Part Resin: Forms the main body of the model, integrating color and structure in one go.
- Water-Soluble Support Resin: Provides stable support for overhangs, hollow structures, and other complex geometries, ensuring high print success rates and accuracy.
¶ Water-Soluble Support Removal for Streamlined, Efficient Post-Processing
After printing, simply immerse the model in water to dissolve the support material automatically, with no manual sanding or cutting required. The final model features a clean surface and vibrant colors, making the entire process from printing to finished part faster and easier.
The CJ270 combines full-color jetting with additive manufacturing, applying precise color as the model is built. By truly enabling simultaneous printing and coloring, it delivers high-quality, full-color 3D models in a single streamlined workflow.
