¶ Step 1: Unboxing and Removal
Open the box and remove the top foam and the Quick Start Guide.
¶ Step 2: Remove the Printer
Lift the printer out of the box along with its packaging, and place it on a level surface.
¶ Step 3: Remove the Foam and Accessories
Remove the packaging bag. Take out the top cover along with the protective foam inside the chamber.
Take out the accessories stored inside the protective foam.

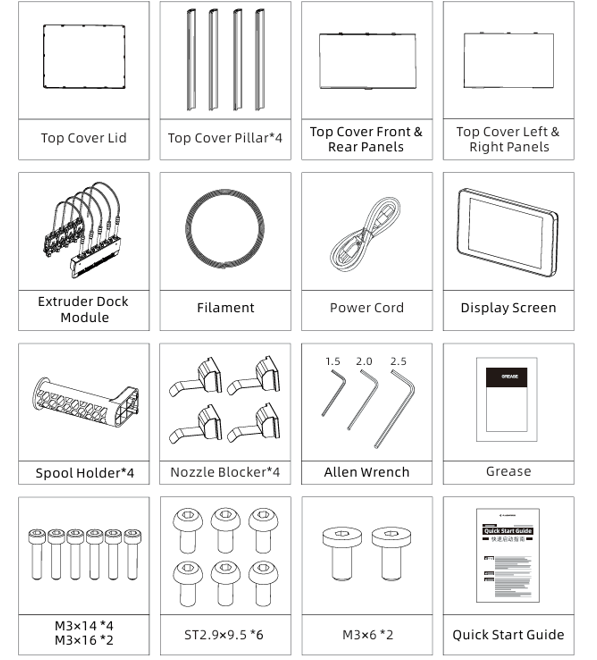

Packaging list:
¶ Step 4: Install the Display Screen
-
Align the slots on the back of the display screen with the mounting points on the printer. Then, attach the display screen as shown.
-
Secure the display screen using two M3×6 screws.
¶ Step 5: Install the Extruder Module
-
Insert the four nozzle blockers into the slots of the extruder dock as shown.
-
Align the extruder module with the slot on the right side of the printer and insert it downward. Make sure the filament inlet is facing outward.
-
Secure the extruder dock module using two M3×16 screws.
-
Mount the four extruders onto the extruder dock, aligning each with its corresponding positioning post according to the order of the extruder connection cables.
-
Connect the extruder mount cable to the communication port on the extruder mount. Once firmly inserted, secure it with two ST2.9×9.5 screws.
¶ Step 6: Unlock the Print Bed
Use a 2.0mm Allen wrench to remove the securing screws indicated by the arrows to unlock the print bed.
¶ Step 7: Install the Top Cover
-
Slide each top cover panel into the grooves of the top cover pillars as shown. Make sure the sides with the clips are all facing the same direction during installation.
-
Align the top cover lid with the clips and press down until it snaps into place. Secure the lid using four M3×6 screws.
-
Once the top cover is assembled, position it onto the printer by aligning the positioning tabs on the front and rear panels with the corresponding holes on the printer.
¶ Step 8: Install the Spool Holder
Remove the spool holder stickers. Insert a spool holder into the mounting hole on the right side of the printer as shown, and secure it with one M3×16 screw.
Repeat this process to install the remaining three spool holders.
(Note: Install the spool holders facing outward to prevent interference with filament feeding.)
Unboxing is completed.
¶ Unboxing Video
View our full Unboxing Video for creator 5 Pro.
https://www.youtube.com/watch?v=K4zkyfqSsig
